A close-up photo of an insulin syringe for type 1 diabetes treatment.

Summary

• Diabetes is a metabolic disease caused by insulin dysfunction
• Insulin deficiency upregulates metabolic pathways and downregulates immune function in the liver
• Multiomics analyses can spot the molecular basis of diabetes

Authors
Henri Deda and
Nuala Del Piccolo

INSULIN, a hormone produced by beta cells in the pancreas, regulates sugar levels in the bloodstream and metabolic processes in the liver. Insulin dysfunction leads to diabetes, a metabolic disease marked by elevated glucose in the bloodstream. The World Health Organization estimates that 422 million people live with diabetes and that the disease causes 1.6 million deaths each year.

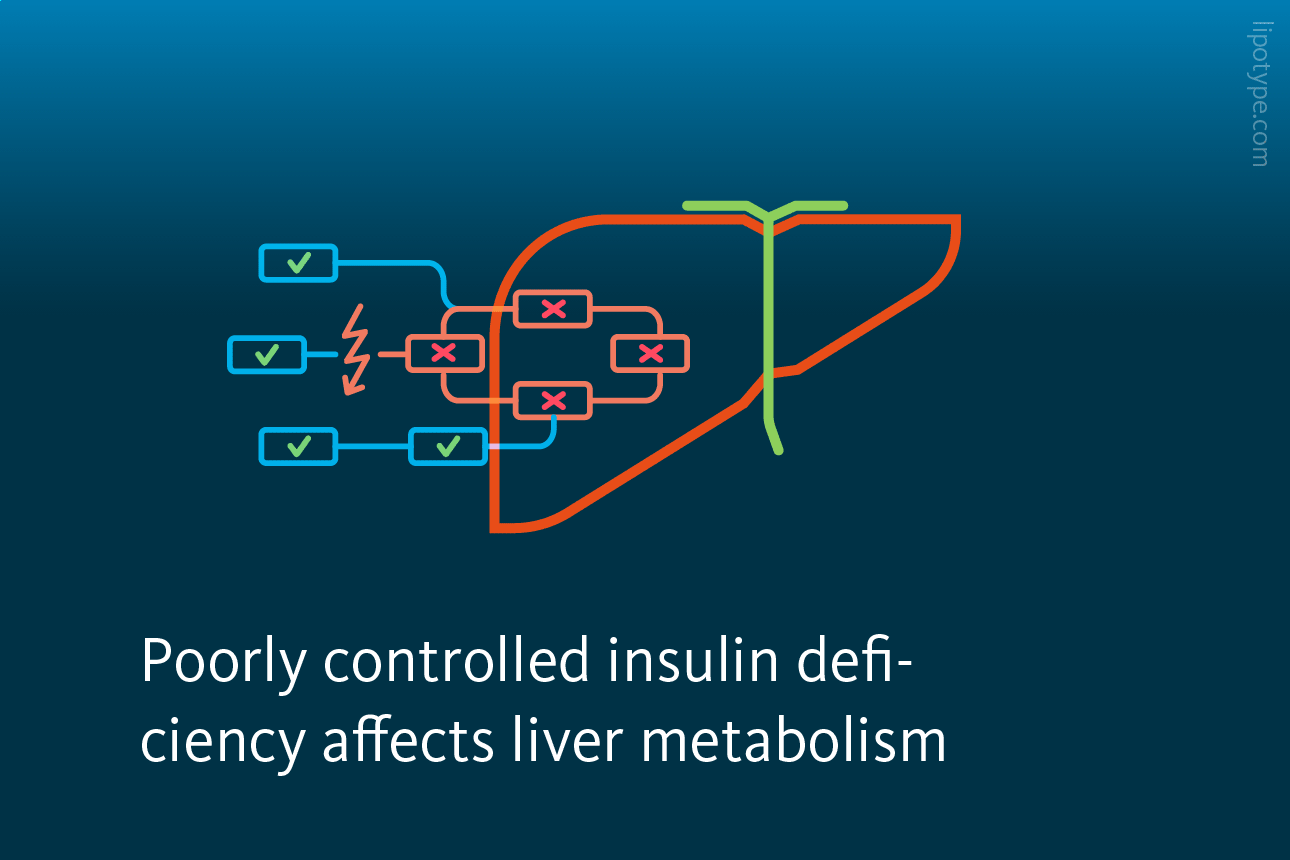

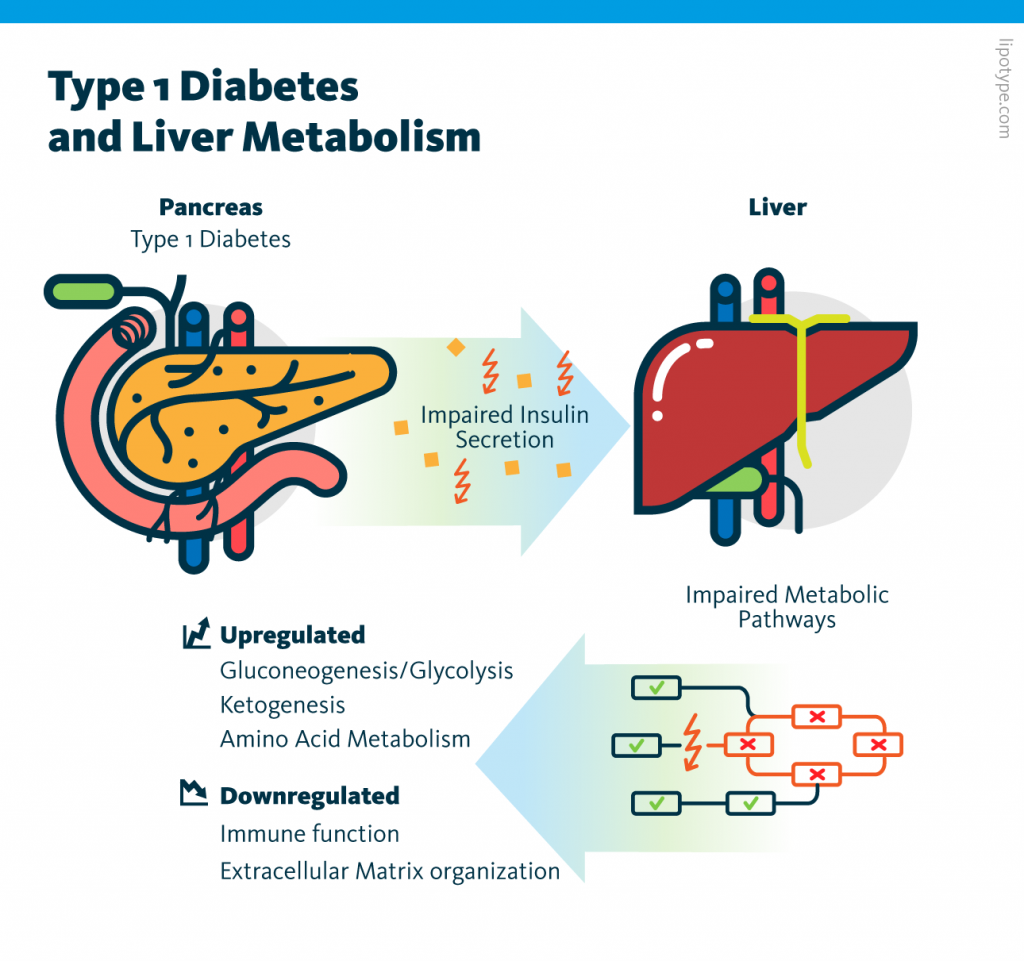

An infographic showing how poorly controlled insulin deficiency in type 1 diabetes causes long-term consequences for the liver and impairs metabolic pathways.

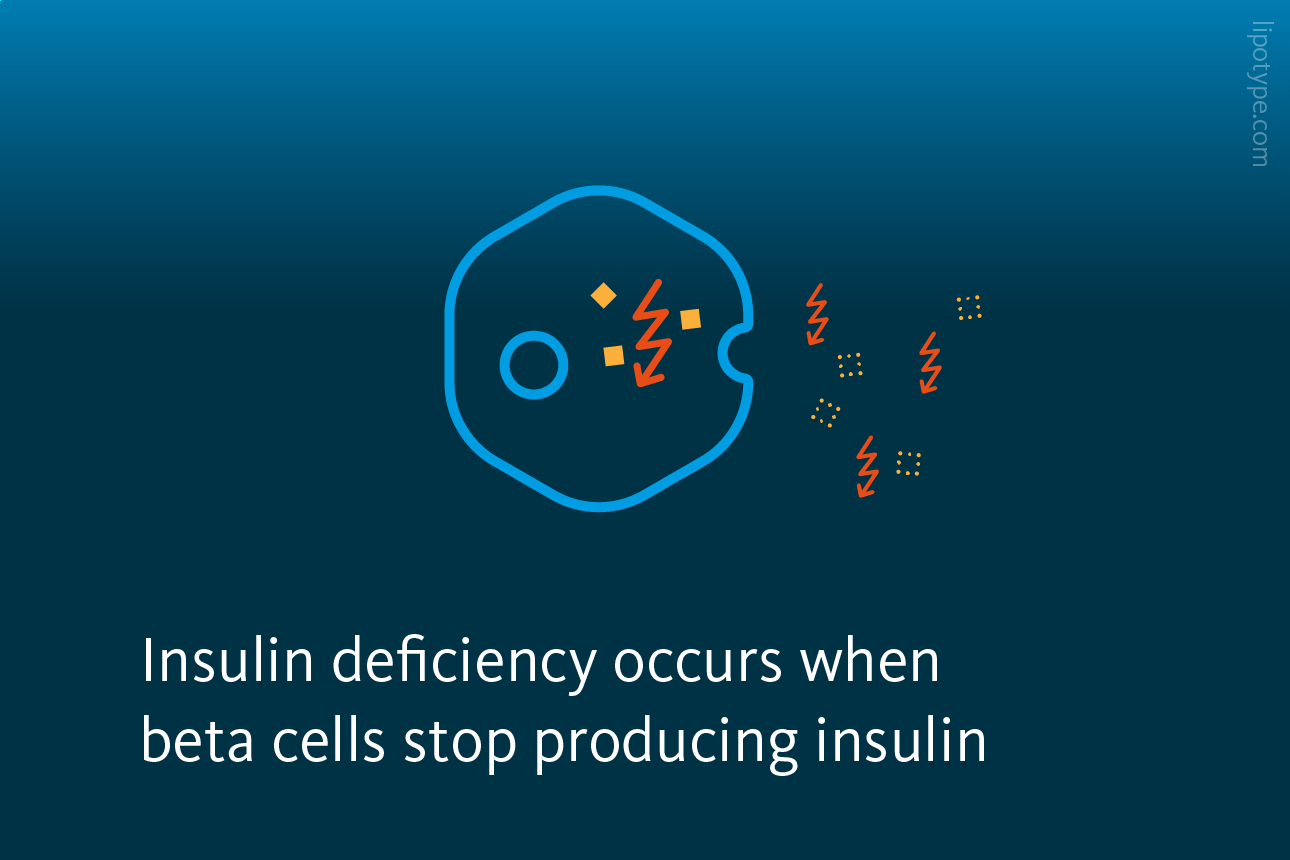

There are multiple causes of insulin dysfunction. Insulin deficiency occurs when beta cells stop producing insulin; this is the primary cause of type I diabetes. Insulin resistance develops when tissues stop responding to insulin; this is the primary cause of type II diabetes. Insulin sensitivity, a measure of the body’s responsiveness to insulin, is reduced in type II diabetes.

Though the causes of beta cell damage in type I diabetes remain unknown, the consequences have been studied extensively. Insulin deficiency inhibits glucose and lipid storage and metabolism throughout the body, which can lead to fatigue, blindness, and even death. Today, type I diabetes is treated through regular injections of recombinant insulin.

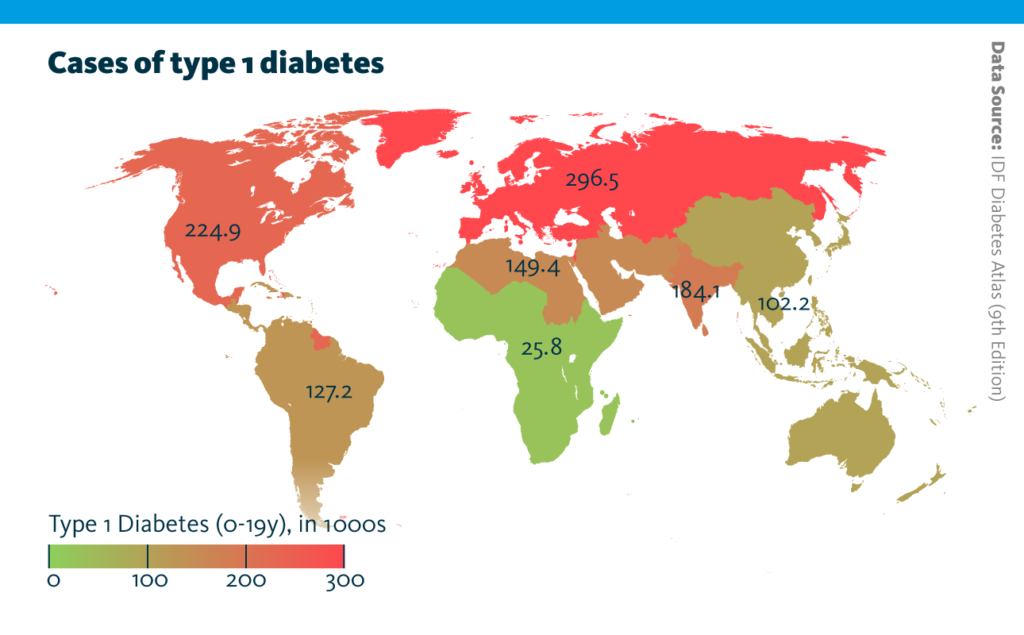

A graph showing the worldwide numbers of known cases of type 1 diabetes in children under 19 years of age by territory in 2019.

Cases of type 1 diabetes: Worldwide numbers of known cases of type 1 diabetes in children under 19 years of age by territory in 2019.
IDF Diabetes Atlas (9th Edition), International Diabetes Federation (2019), www.diabetesatlas.org/data

In 2017, a research team from Ludwig-Maximilians-Universität Munich established a biobank of tissues from wild-type and diabetic pigs. To model type I diabetes, the pigs were engineered to express a mutant form of insulin that doesn’t bind to the cognate receptor. The pigs then received limited insulin treatment to replicate poorly controlled human disease. The samples are a unique resource for multi-tissue, multiomics analyses of molecular pathways in type I diabetes.

Insulin plays a key role in regulating metabolism of glucose, glycogen, and fatty acids in the liver. However, the impact of chronic insulin deficiency on liver function is incompletely characterized. To address this gap, the research team analyzed diabetic and wild-type liver tissue from their biobank using multiomics: namely, transcriptomics, proteomics, metabolomics, and lipidomics.

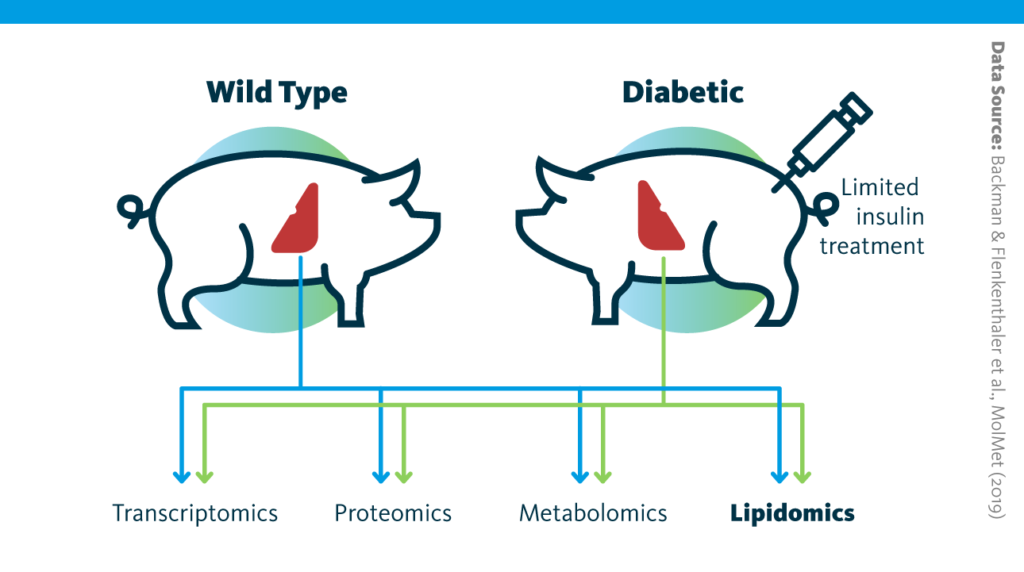

A graphical outline of the multiomics study of long-term consequences of insulin-deficient diabetes for the liver.

Study design schematic: Graphical outline of the multiomics study of long-term consequences of insulin-deficient diabetes for the liver.
Backman & Flenkenthaler et al., MolMet (2019), doi: 10.1016/j.molmet.2019.05.011

Broadly, the research team’s multiomics analyses demonstrated that metabolic pathways – including gluconeogenesis/glycolysis, ketogenesis, amino acid metabolism, and glucagon signaling – are upregulated in diabetic pigs. These results match expectations: insulin is a negative regulator of many metabolic pathways in the liver.

The data also revealed that diabetic pigs downregulate pathways involved in immune function and extracellular matrix organization. The implications of these unexpected results have not been fully explored.

Lipotype Shotgun Lipidomics covers thousands of individual lipids.

Through comparison of transcriptomic and proteomic data, the team identified the molecular drivers behind altered metabolism in diabetic pigs. For example, retinol dehydrogenase 16, an enzyme involved in regulation of gluconeogenesis – or, production of glucose from amino acids, fatty acids, and waste products – is highly upregulated in diabetic pigs relative to their wild-type counterparts. Insulin deficiency also increases expression of 3-hydroxy-3-methylglutaryl-CoA synthase 2, an enzyme that catalyzes the first step of ketogenesis.

Consistent with altered ketogenesis, which includes fatty acid metabolism, the lipidomics analysis showed that the concentration of long-chain and short-chain acylcarnitines are increased and decreased, respectively, in diabetic pigs compared to wild-type ones. Acylcarnitines transport fatty acids across membranes and are involved in mitochondrial energy production.

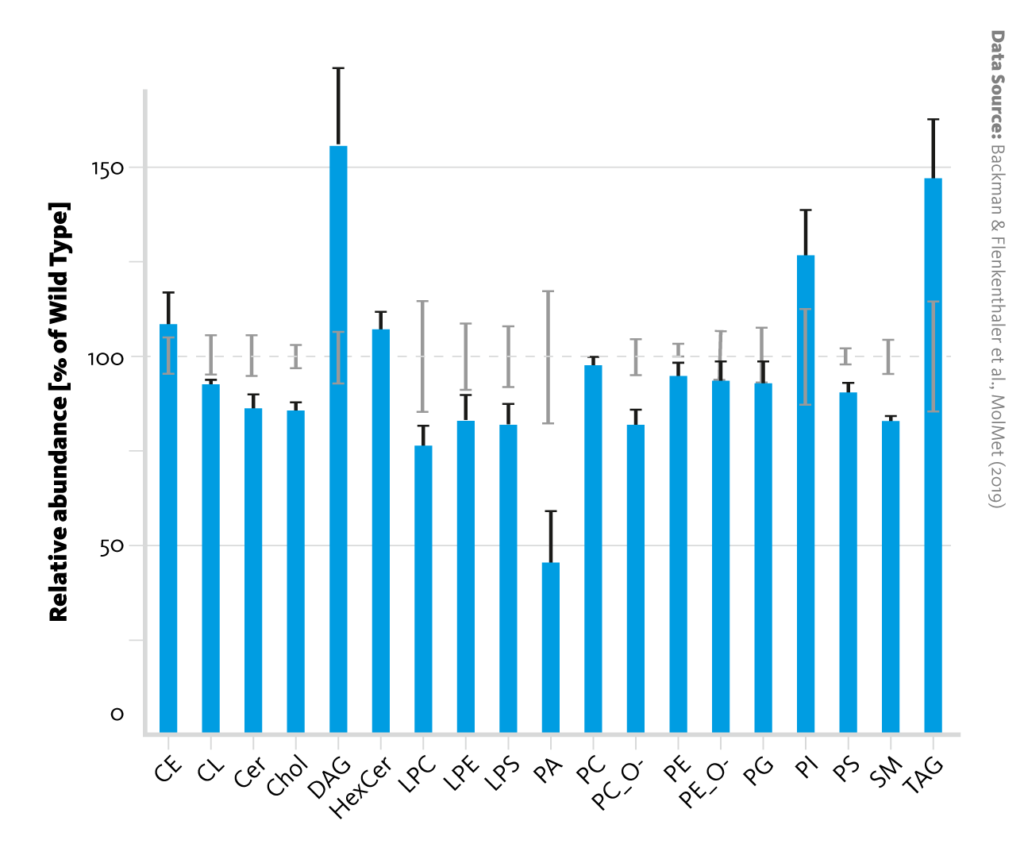

A scientific graph depicting the relative abundances of lipid classes in liver tissue of diabetic pigs (blue bars) in comparison with wild-type pigs (dashed line). Error bars represent the standard error of the mean.

Lipid class abundance changes between wild-type and diabetic pigs: Relative abundances of lipid classes in liver tissue of diabetic pigs (blue bars) in comparison with wild-type pigs (dashed line). Error bars represent the standard error of the mean.
Backman & Flenkenthaler et al., MolMet (2019), doi: 10.1016/j.molmet.2019.05.011

Increased concentrations of both triacylglycerol and its precursor diacylglycerol suggest that insulin deficiency may also elevate hepatic metabolism of triacylglycerides. Additionally, the concentrations of sphingomyelin, lyso-phosphatidylserine, phosphatidate, cholesterol, and phosphatidylserine were all reduced in diabetic pigs.

Overall, the study elucidates the relationship between insulin deficiency and liver function at the molecular level. These multiomics data identify the drivers of altered metabolism in the liver and serve as a resource for future diabetes researchers.

Comprehensive transcriptomic, proteomic, metabolomic, and/or lipidomic analyses can characterize the molecular basis of physiological and pathological processes. This approach may inform the development of targeted therapies for diseases like diabetes. Multiomics analyses have also proven valuable for cardiovascular disease research.

Lipotype Shotgun Lipidomics technology can identify the class and quantify the concentration of lipids found in cells and tissues. These data can be compared with other multiomics analyses to characterize the molecular basis of human diseases, including diabetes.
