Exosomes for Drug Delivery

Research Article Exosomes may be useful for targeted drug delivery. Proteomic and lipidomic characterization are needed to realize this goal.

About the authors


Henri Deda and
Nuala Del Piccolo
Henri Deda
Communications Officer

Henri Deda holds a degree in Molecular Bioengineering. He is spirited to discover what scientists are interested in and to provide concise answers.


Nuala Del Piccolo
Science Writer

Dr. Nuala Del Piccolo did her PhD in materials sciences at John Hopkins. She is passionate about communicating science to a wide audience.

Resources


Evaluation of bovine milk extracellular vesicles…

Grossen et al. | EJBP (2021)


An automated shotgun lipidomics platform…

Surma et al. | EJLT (2015)


Systematic screening for novel lipids by…

Papan et al. | Anal. Chem. (2014)


Lipidomics Resource Center



About Lipotype


Lipotype is the leading lipidomics service provider. Order your service. Send your samples. Get your data.

Lipotype Shotgun Lipidomics


Coverage of 57 lipid classes and 3100+ individual lipids

Rich variety of sample types from subcellular to organs

High-throughput analysis for data in as little as 2 weeks

GMP certified, robust, and highly reproducible

A computer render of exosomes entering a cell.

Summary

• Exosomes are promising vehicles for targeted drug delivery
• Exosomes from cow milk are non-toxic, but cargo delivery and functionality has to improve
• Lipidomics can identify exosome properties for drug delivery

Authors
Henri Deda and
Nuala Del Piccolo

EXOSOMES – or, nanometer-sized particles derived from the lipid membranes of cells – play an integral role in communication between cells and organs in the human body. These particles consist of a lipid shell surrounding cargo, which is delivered to specific sites in the body and alters the function of the recipient cell. Exosome-mediated communication has been implicated in the immune response, cancer, and neurodegeneration.

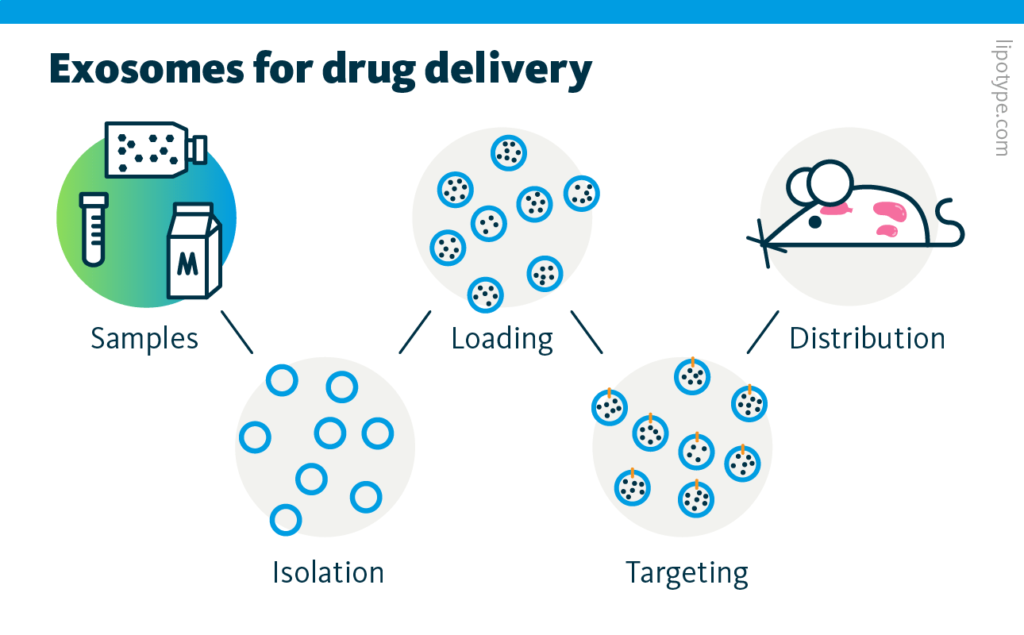

An infographic showing the basic workflow of exosomes for drug delivery. Exosomes are collected from samples and isolated; they are loaded with the desired cargo. A cell targeting modification is introduced to the exosomes until they are administered to the organism where the exosomes are biodistributed.

Recently, exosomes have attracted the attention of scientists studying targeted drug delivery. These scientists hope to adapt exosomes to deliver therapies, instead of their natural cargo, to specific cells. For example, these reengineered exosomes might deliver a vaccine to stimulate the immune system or a chemotherapy drug to a breast cancer cell but not the surrounding healthy tissue.

As a potential drug delivery vehicle, exosomes offer multiple advantages. The natural cargo of exosomes is diverse and may include nucleic acids, proteins, and/or other biomolecules. This provides flexibility in the choice of therapeutic cargo. Following fusion of the lipid shell with the plasma membrane, exosomes deliver their cargo directly into the cytoplasm of recipient cells. This circumvents the cell’s plasma membrane, a formidable barrier to drug delivery.

An infographic depicting how cells take up exogenous exosomes (red) through several mechanisms such as receptor-mediated endocytosis or lipid rafts. Inside the cell, the exogenous exosomes accumulate together with endogenous exosomes (blue) into early sorting endosomes to be released from the cell or distributed intracellularly for further exosome processing.

Exosome uptake and intracellular distribution and processing: Cells take up exogenous exosomes (red) through several mechanisms such as receptor-mediated endocytosis or lipid rafts. Inside the cell, they accumulate together with endogenous exosomes (blue) into early sorting endosomes to be released from the cell or distributed intracellularly for further exosome processing.

However, attempts to reengineer exosomes for targeted drug delivery have met with limited success to date.

Researchers from Roche Pharma Research and Early Development and University of Basel hypothesized that exosomes from cow milk may be an effective vehicle for targeted drug delivery. Exosomes from cow milk can be purified in large quantities and are resistant to the acids in the gastrointestinal tract, making them an enticing option for oral delivery of therapies.

A transmission electron microscopy (TEM) image of purified bovine milk extracellular vesicles after uranyl acetate negative staining. The magnification is 50’000x, the scale bar in the bottom left represents 200 nm.

TEM image of extracellular vesicles from bovine milk: A Transmission electron microscopy (TEM) image of purified bovine milk extracellular vesicles after uranyl acetate negative staining. The magnification is 50’000x, the scale bar in the bottom left represents 200 nm.
Grossen et al., EJPB (2021), doi: 10.1016/j.ejpb.2020.11.012

To test their hypothesis, the research team isolated exosomes from cow milk and then characterized the particles’ protein and lipid composition using multiple omics technologies. Then, the team loaded the exosomes with therapeutic anti-sense RNA (a type of nucleic acid) and delivered the exosomes to cells in culture and in mice.

The isolated exosomes were spherical with diameters between 50 and 150 nm and molecular weights ranging from 30 to 320 MDa. The protein content of the exosomes was heterogeneous, with 817 proteins identified. The size, weight, and protein composition measurements aligned with previous reports for exosomes.

A scientific graph depicting the lipid composition of purified extracellular vesicles isolated from spring milk (green), from fall milk (orange), and from fall milk loaded with LNA ASO cargo (blue).

Lipid composition of purified extracellular vesicles from bovine milk: Lipidomics analysis of purified extracellular vesicles isolated from spring milk (green), from fall milk (orange), and from fall milk loaded with LNA ASO cargo (blue).
Grossen et al., EJPB (2021), doi: 10.1016/j.ejpb.2020.11.012

Lipidomics of the exosomes identified 8 major lipid classes in which more than 200 fatty acid variations occurred. In line with previous exosome lipid analyses, high levels of phosphatidylcholine, phosphatidylethanolamine, cholesterol, and phosphatidylserine lipids were found. Yet, bovine milk exosomes exhibited increased levels of phosphatidylinositol lipids.

Interestingly, this complex lipid composition was independent of both, the season in which the cow milk was collected and the exosome cargo.

The researchers loaded the exosomes with a therapeutic anti-sense RNA that knocks down expression of the neuronal proteins from the gene MAPT, the tau proteins which are abundant in neurons and associated with Alzheimer’s and Parkinson’s. They delivered the particles to cells in culture and in mice.

QUOTE

Exosomes are promising vehicles for targeted drug delivery. We just need to identify relevant exosome parameters – such as lipid composition – and adjust them to deliver drugs to a target.

Dr. Christian Klose.
Dr. Christian Klose
CTO at Lipotype GmbH

In cell culture, the therapeutic particles reduced expression of MAPT proteins and this effect was dose-dependent. However, oral delivery of nucleic acid-loaded exosomes in mice did not significantly alter expression of MAPT in neurons. The exosomes were non-toxic in both systems.

Overall, this study demonstrates that exosomes from cow milk can be loaded with therapeutic nucleic acids and are a non-toxic drug delivery vehicle. However, the cargo delivery was inefficient and therapeutic efficacy was low. Future work will seek to increase delivery and functionality of exosome cargo.

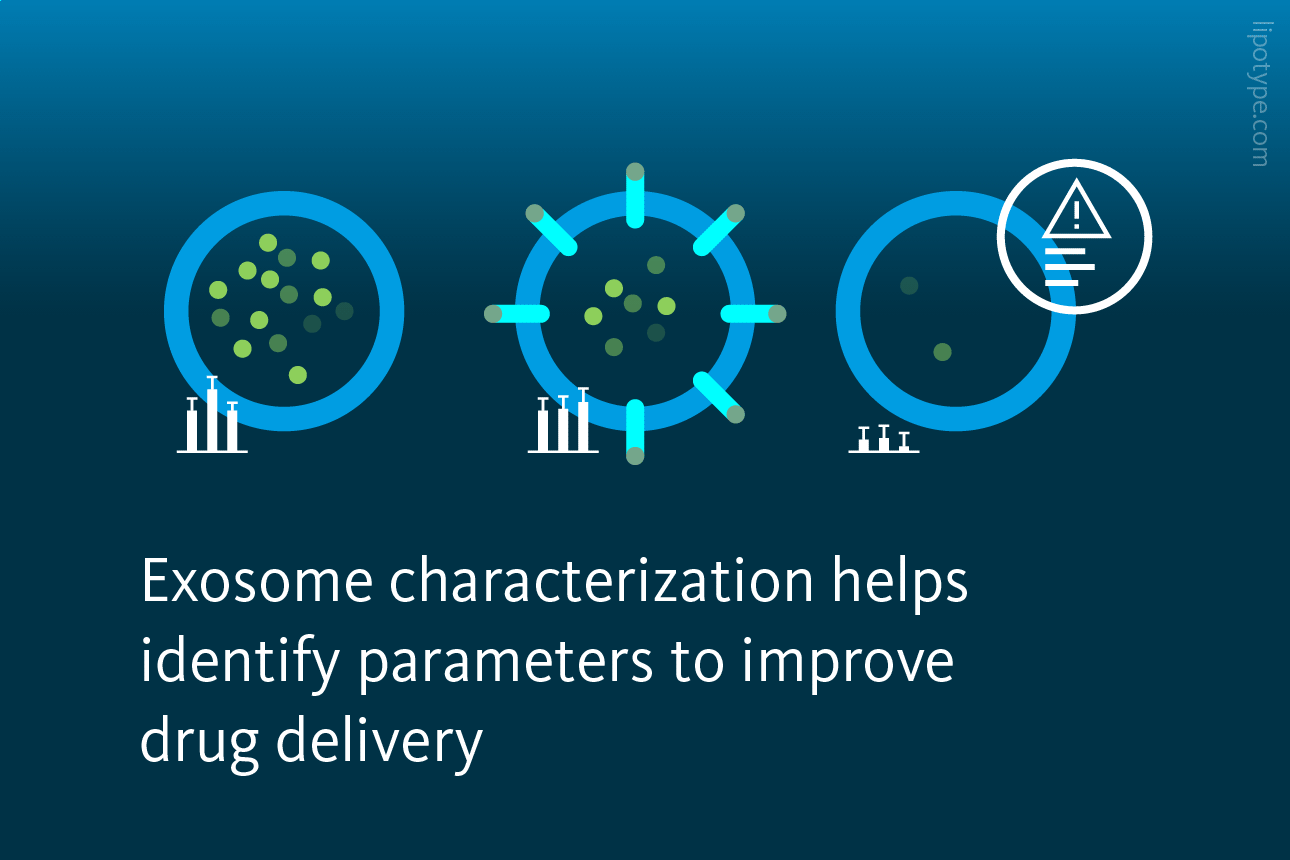

Though exosomes are capable of delivering cargo to specific cells and organs in the body, they remain a promising but unrealized vehicle for targeted drug delivery. This limited therapeutic success can be partly attributed to the heterogeneous molecular composition of exosomes, which remains incompletely characterized. Comprehensive proteomic and lipidomic characterization of exosomes may identify the properties necessary for targeted delivery.

Lipotype Shotgun Lipidomics technology can comprehensively characterize the species and quantity of lipids found in exosomes. This data may be useful to researchers working to adapt exosomes as a vehicle for targeted drug delivery.
